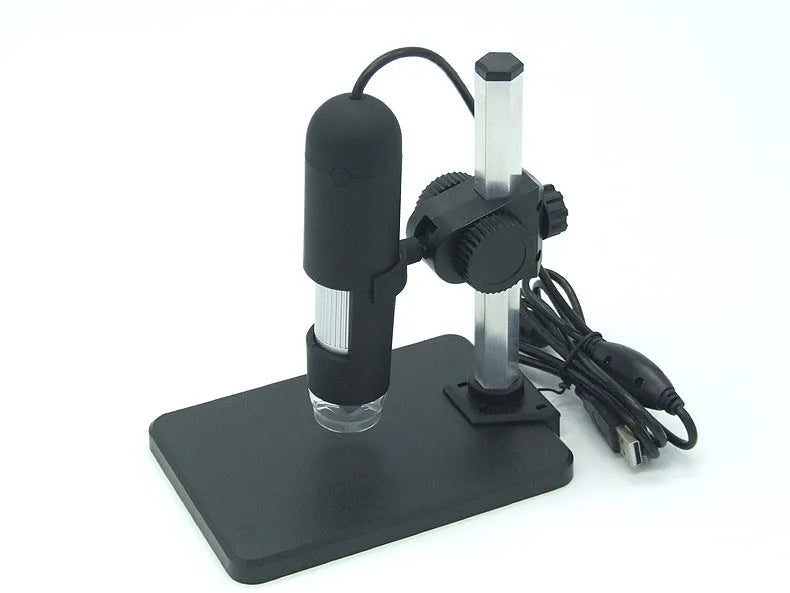

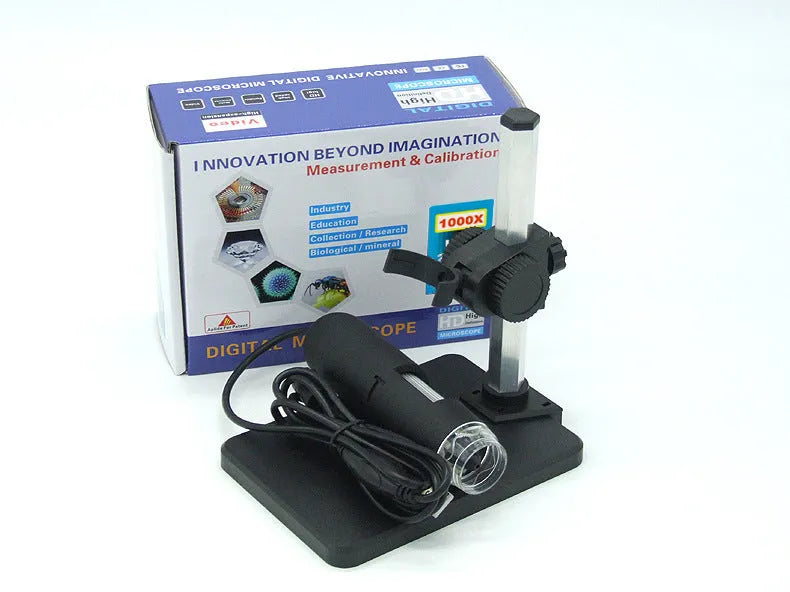

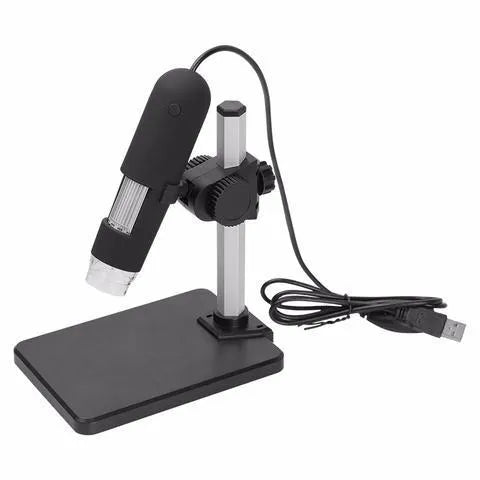

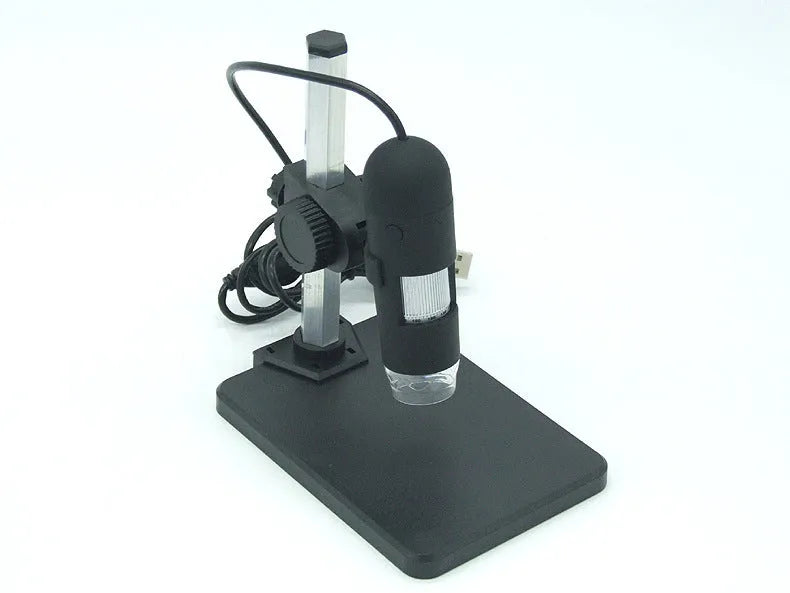

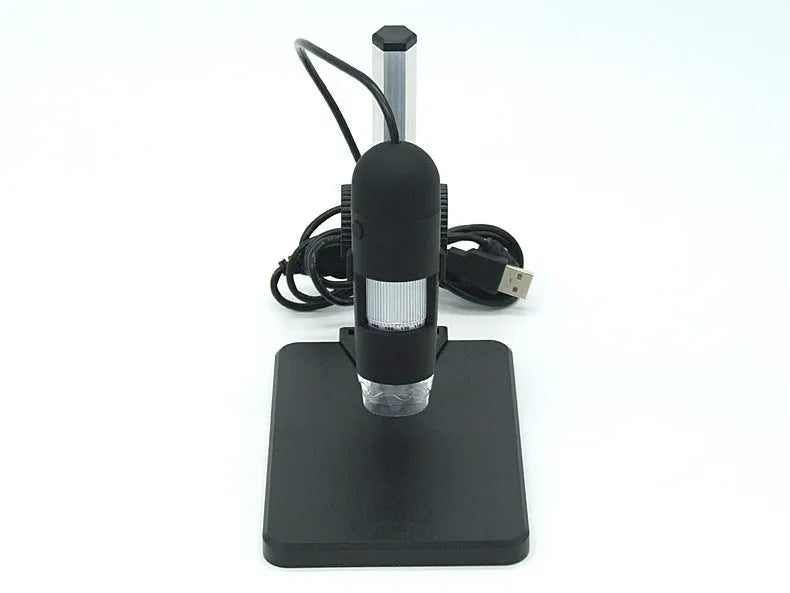

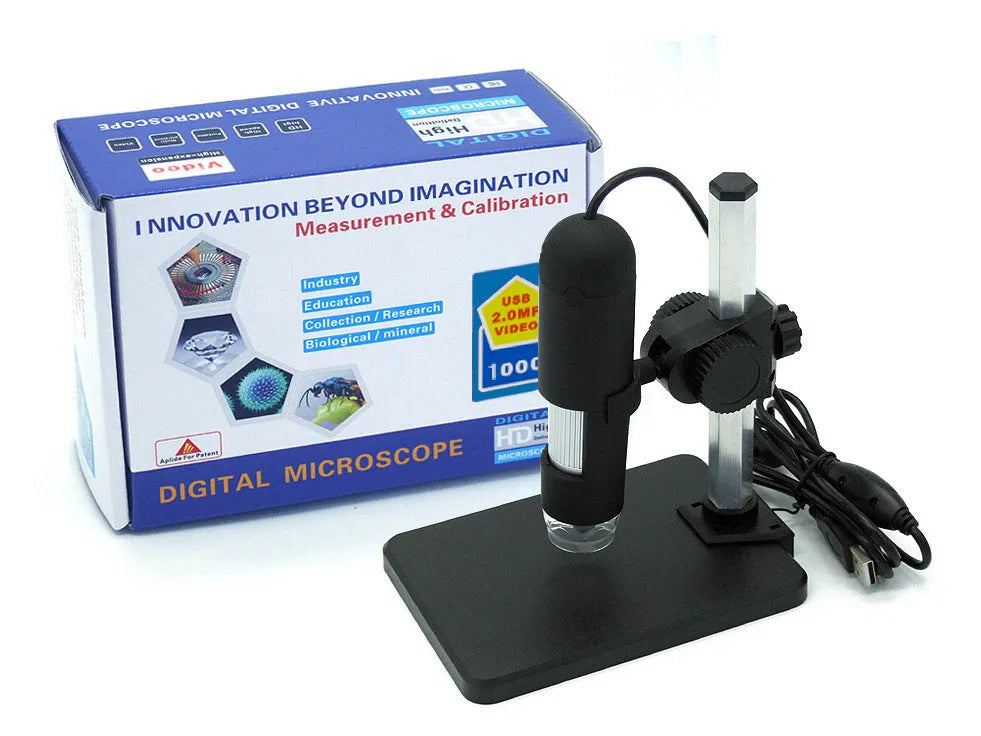

USB Microscope Camera 1000X Magnification with 8 LED Lights for PCB Inspection

This USB microscope camera delivers high-speed DSP control for live inspection of small components, circuit boards, and industrial materials. With a manual focus range of 0mm to 40mm and 1000X magnification, it provides detailed views without the need for bulky microscope stands. The built-in 8 white-light LED illuminator ensures the magnified image remains clear and bright, with adjustable brightness control for varying lighting conditions. Connect directly to your computer via USB 2.0 or USB 1.1 port, powered at 5V DC, and start viewing or capturing images immediately. The device supports Windows XP, Vista, and Windows 7 operating systems in both 32-bit and 64-bit editions, and includes English, Chinese, and other language options for global use.

Features and Construction

This USB microscope camera is built around a high-speed DSP controller that enables smooth video streaming and quick image capture. The device is designed for straightforward setup and operation, with driver-free availability for most compatible systems. The construction includes a black plastic housing that houses the sensor, lens, and LED ring, offering a practical tool for inspection tasks.

Magnification and Optical System

The camera offers manual magnification up to 1000X, allowing users to examine fine details on objects such as solder joints, textile fibres, or biological samples. The focus range of 0mm to 40mm provides sufficient working distance for most inspection scenarios, and the 5X digital zoom in sequence mode enables further enlargement of captured areas for closer analysis.

Image Capture and Video Performance

Still image capture resolution is 640x480, providing clear stills for documentation or analysis. Video capture resolution is 0.3M, with a frame rate of 30 f/s under 600 LUX brightness, ensuring smooth live motion viewing. The snap shot software and hardware allows quick acquisition of images without interrupting the live feed, making it suitable for repetitive inspection tasks.

Lighting and Brightness Control

The 8 white-light LED illuminator is built into the camera head, delivering even lighting over the subject area. Brightness is adjusted manually, so users can set the light level appropriate for reflective or dark materials. This adjustable illumination ensures that magnified images remain clear and bright regardless of the ambient light in the workspace.

Uses and Placement

This USB microscope camera is suited for a range of inspection and documentation tasks where small details need to be viewed on a computer screen. Its compact design and USB connectivity make it a portable tool that can be used at a workbench, in a laboratory, or in the field.

PCB and Electronics Inspection

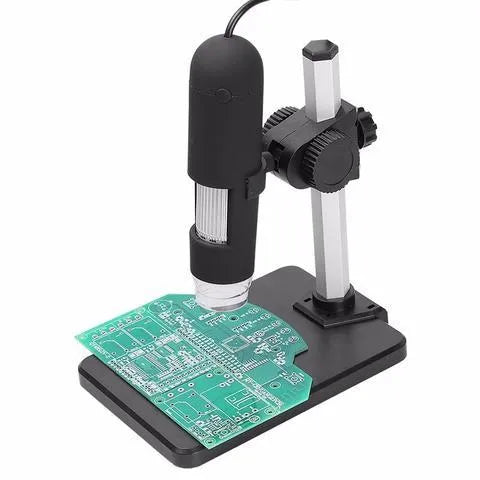

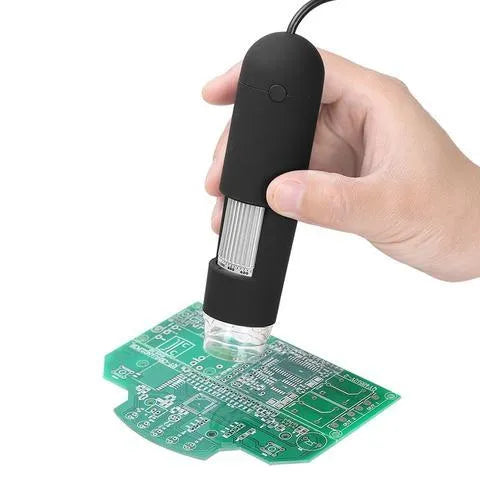

The 1000X magnification and adjustable LED lighting are well suited for inspecting printed circuit boards, solder joints, and electronic components. Users can identify defects, check alignment, or document assembly quality without removing the board from the system.

Industrial and Quality Control Use

In manufacturing or quality control environments, the camera can be used to examine surface finishes, small parts, and material textures. The still image capture feature allows users to record evidence of flaws or conformity for reporting purposes.

Educational and Hobby Applications

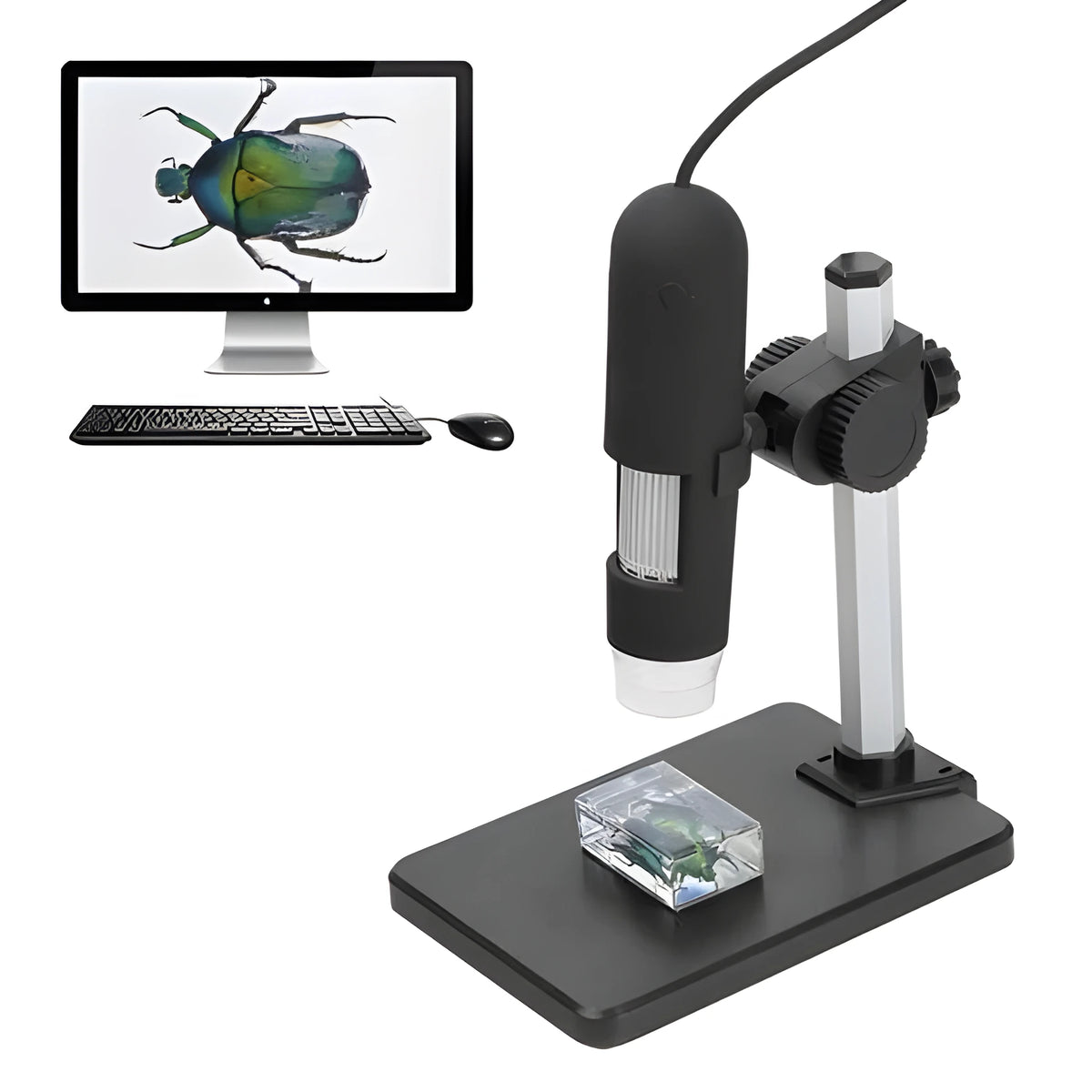

Hobbyists and educators can use this camera for examining coins, stamps, textiles, plants, or small insects. The live video output and snapshot function enable sharing images on a screen for group observation or remote consultation.

Benefits and Buying Value

This USB microscope camera offers a cost-effective way to add high-magnification inspection capability to any compatible computer. The combination of 1000X manual zoom, adjustable LED lighting, and straightforward driver setup provides practical value for users who need detailed visual data without investing in traditional optical microscopes.

Easy Setup and Compatibility

The high-speed DSP controller supports driver-free operation on many systems, and the included CD driver provides compatibility with Windows XP, Vista, and Windows 7 in both 32-bit and 64-bit architectures. The device is USB 2.0 and USB 1.1 compatible, so it works with a wide range of computers.

Reusable and Low Maintenance

With no moving parts other than the manual focus ring and brightness control, the camera requires minimal maintenance. The LED illuminator has a long operational life, and the USB power supply eliminates the need for batteries or external power adapters.

Why Choose This Product

For users who require a practical, computer-connected magnification tool for inspection, documentation, or education, this USB microscope camera provides a straightforward solution. The 1000X magnification, adjustable LED lighting, and snapshot capability address common inspection needs without unnecessary complexity.
