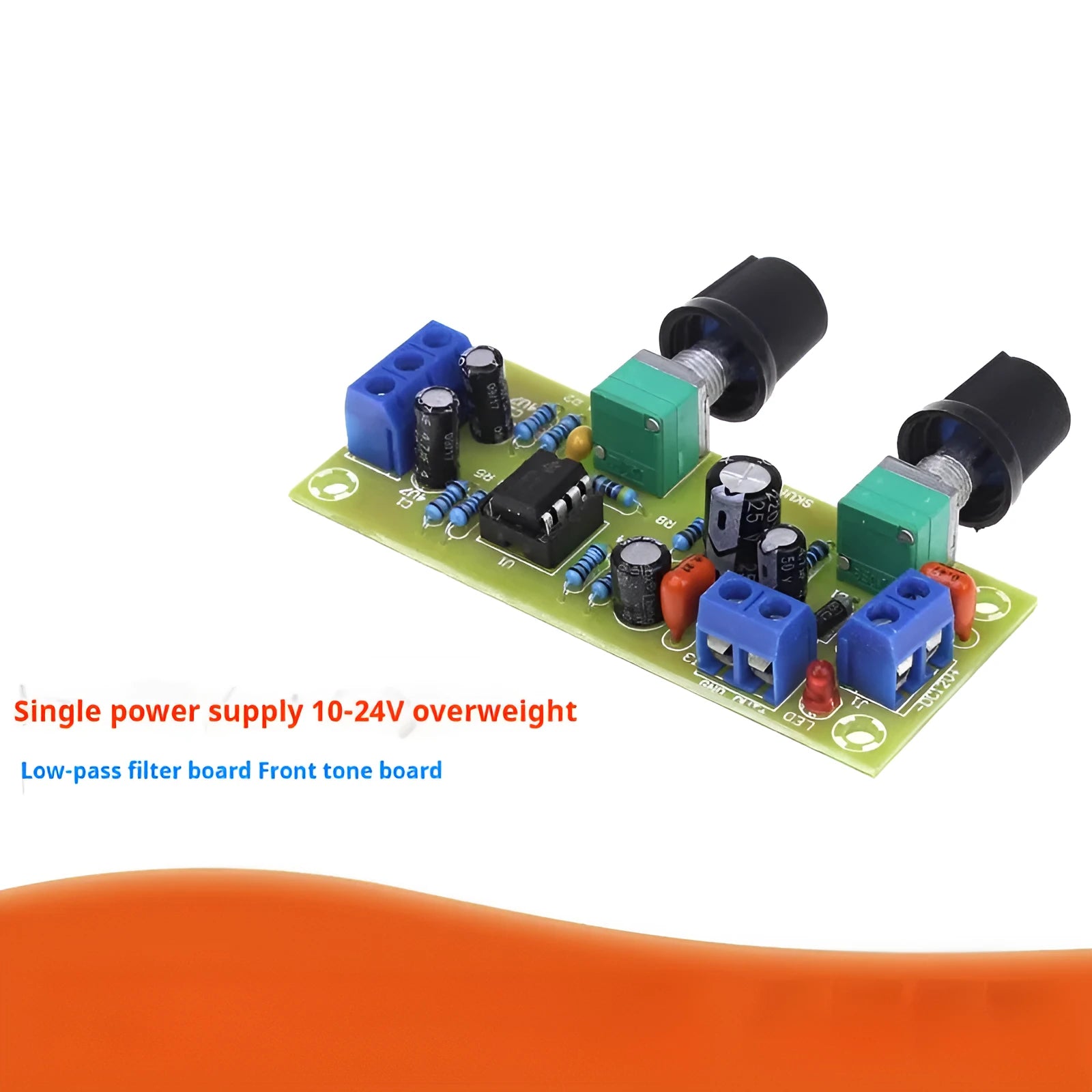

Super dynamic bass boost front stage board with single 10-24V power supply and mono audio output

This front stage amplifier board delivers a specialised solution for enhancing bass frequencies in audio systems, particularly suited to automotive and subwoofer applications. Operating on a single 10-24V DC power supply makes it compatible with various vehicle electrical systems and portable audio setups. The board's 22Hz-300Hz frequency response concentrates specifically on low-frequency reproduction, allowing users to boost sub-bass tones without affecting mid-range or high-frequency audio components. With its mono output configuration and ability to accept either mono or dual channel inputs, this board provides straightforward integration into existing audio setups.

Features and Construction

The front stage board incorporates several design elements that contribute to its functionality in bass enhancement applications. Built around a compact form factor, the board maintains essential features while minimising space requirements for installation flexibility.

Material and Build

Constructed using super hardness FR-4 fibreglass material, the PCB provides reliable electrical insulation and structural integrity for the amplification circuit. This material selection offers thermal stability and mechanical strength for consistent performance across the operating voltage range. The 1.6mm thickness contributes to board rigidity while supporting component mounting and soldering requirements. The board's material properties help maintain signal integrity across the specified frequency range.

Size and Practical Fit

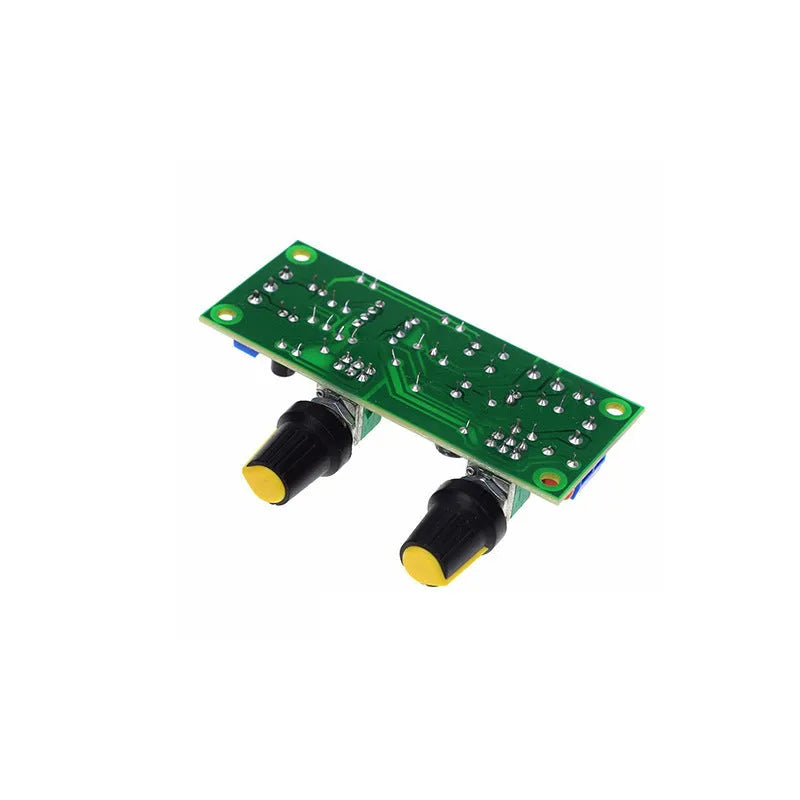

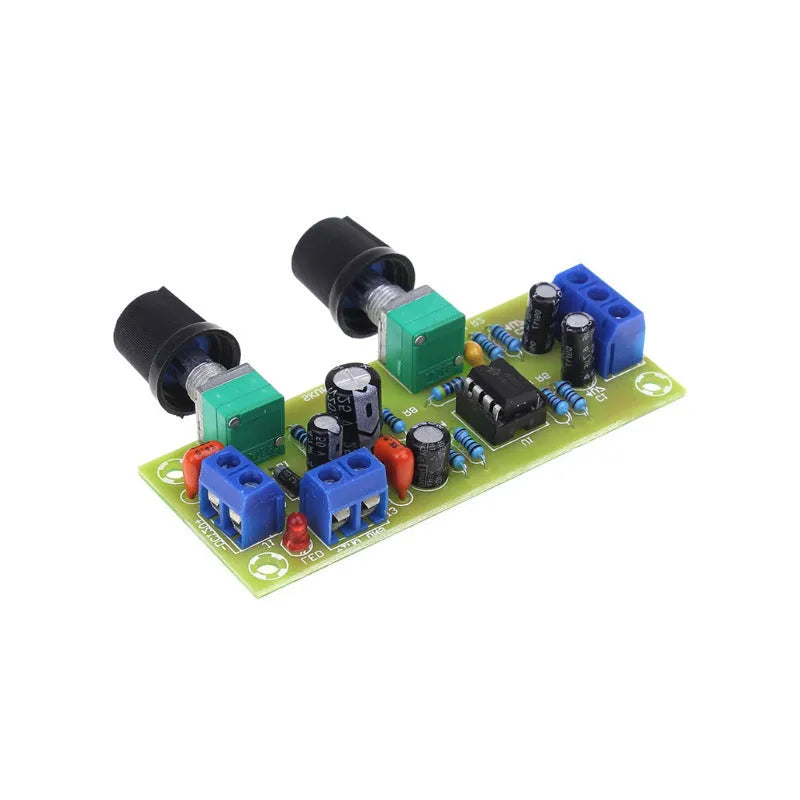

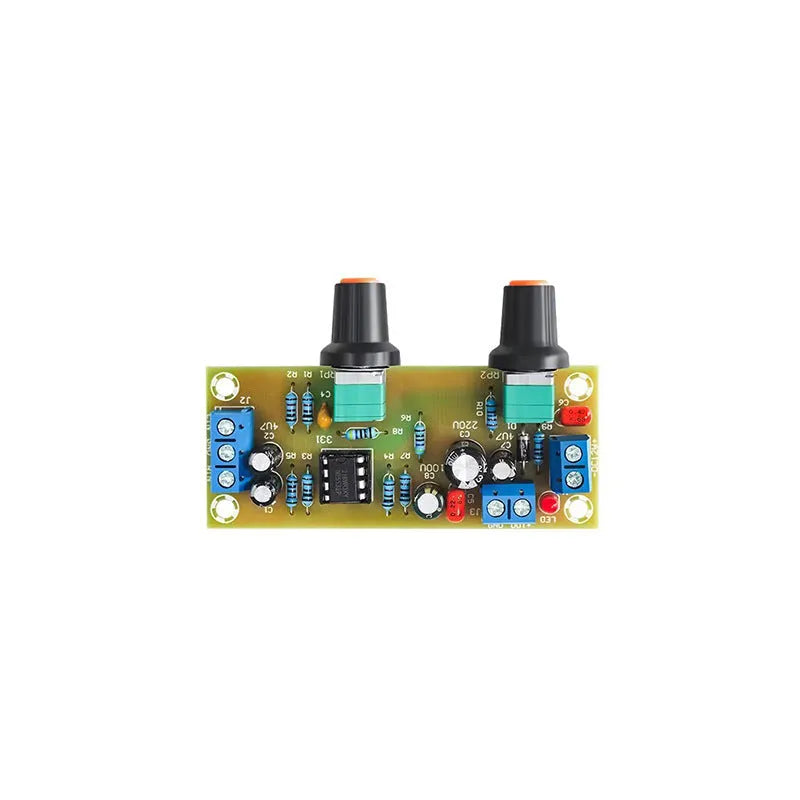

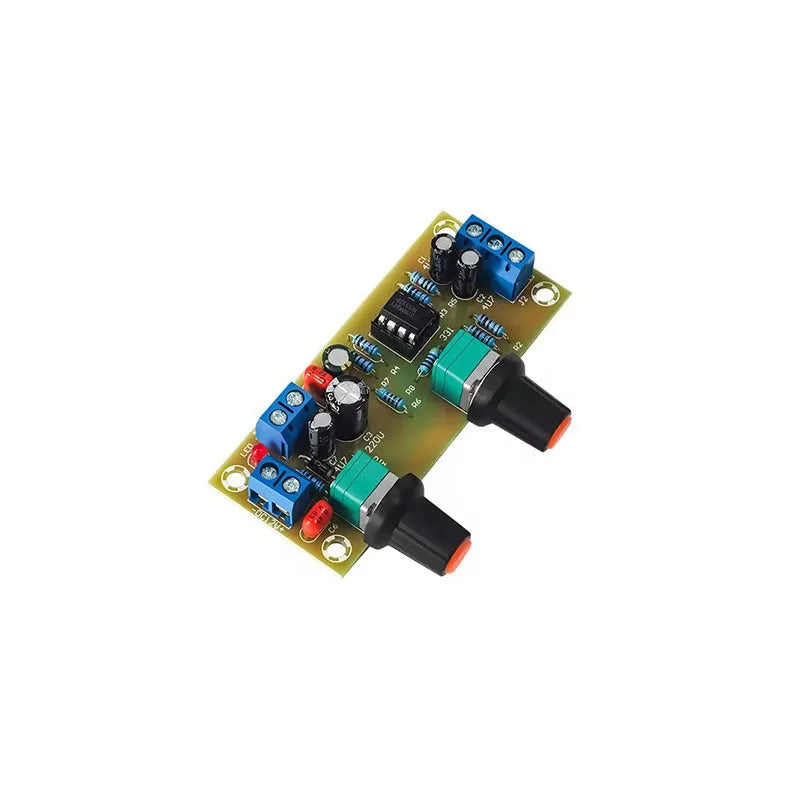

Measuring 78mm by 32mm, the board maintains a compact footprint suitable for space-constrained installations in vehicles or compact audio enclosures. The 70mm by 24mm centre spacing of mounting holes provides standardised attachment points for secure installation, with 3.2mm diameter holes accommodating common hardware sizes. Potentiometer shafts positioned at 32.5mm centre spacing allow for standard control component integration. At 30g net weight, the finished board remains lightweight while containing essential amplification circuitry.

Uses and Placement

This bass boost front stage board serves specific applications where enhanced low-frequency response improves audio system performance. Its design parameters make it particularly relevant for automotive sound systems and dedicated subwoofer installations.

Event or Professional Use

For mobile DJ setups or portable sound reinforcement systems, the board's 10-24V power supply compatibility allows operation from various DC sources including vehicle electrical systems, battery banks, or regulated power supplies. The mono output configuration simplifies connection to subwoofer amplifiers or dedicated low-frequency drivers. The 22Hz-300Hz frequency range focuses amplification specifically on bass frequencies that benefit from additional gain in live sound applications.

Everyday Home Use

In home audio systems, this board can enhance subwoofer performance by providing additional gain specifically for low-frequency signals. The single power supply requirement simplifies integration with existing audio components, while the compact dimensions allow discreet installation within audio equipment enclosures or speaker cabinets. The board's ability to accept both mono and dual channel inputs provides flexibility for various source equipment configurations commonly found in home entertainment systems.

Benefits and Buying Value

This front stage board offers practical advantages for users seeking to improve bass response without complex system modifications. Its design focuses on essential amplification functions with straightforward implementation requirements.

Reuse and Low Maintenance

The FR-4 fibreglass construction provides durable performance without requiring specialised maintenance procedures. The board's standard mounting hole pattern facilitates secure installation that maintains position over extended use periods. With no moving parts beyond control potentiometers, the amplification circuit maintains functionality without mechanical wear concerns typical of more complex audio processing equipment.

Why Choose This Product

This board provides a dedicated bass boost solution with specific frequency targeting that complements existing audio equipment. The 10-24V power supply range accommodates various installation scenarios from 12V automotive systems to 24V industrial audio applications. The compact 78x32mm dimensions allow installation in space-limited locations while providing complete amplification circuitry. By focusing specifically on 22Hz-300Hz frequencies, the board avoids unnecessary processing of mid-range and high-frequency signals that typically don't require additional amplification in subwoofer applications.
