304 Stainless Steel Fine Atomisation Nozzle with 0.2mm to 2.0mm Aperture Selection

This high and low-pressure fine atomisation nozzle is engineered for professional and industrial applications that demand reliable mist generation. Constructed from 304 stainless steel, it offers a robust and corrosion-resistant solution for systems involving water, mild chemical solutions, or fuels. The core function is to atomise liquid into a fine spray, making it a critical component for processes such as humidifying and cooling air, suppressing dust, creating artificial fog for landscaping or effects, and atomising fuel for efficient combustion. Its 1/4-inch external thread connection provides a standardised fitting for integration into various pressurised piping systems, while the ten available aperture sizes grant precise control over the spray's characteristics.

Features and Construction

The nozzle's design focuses on durability and functional precision for consistent performance in demanding settings. Its build and material choices are directly tied to practical performance in environments where wear and chemical exposure are concerns.

Material and Build

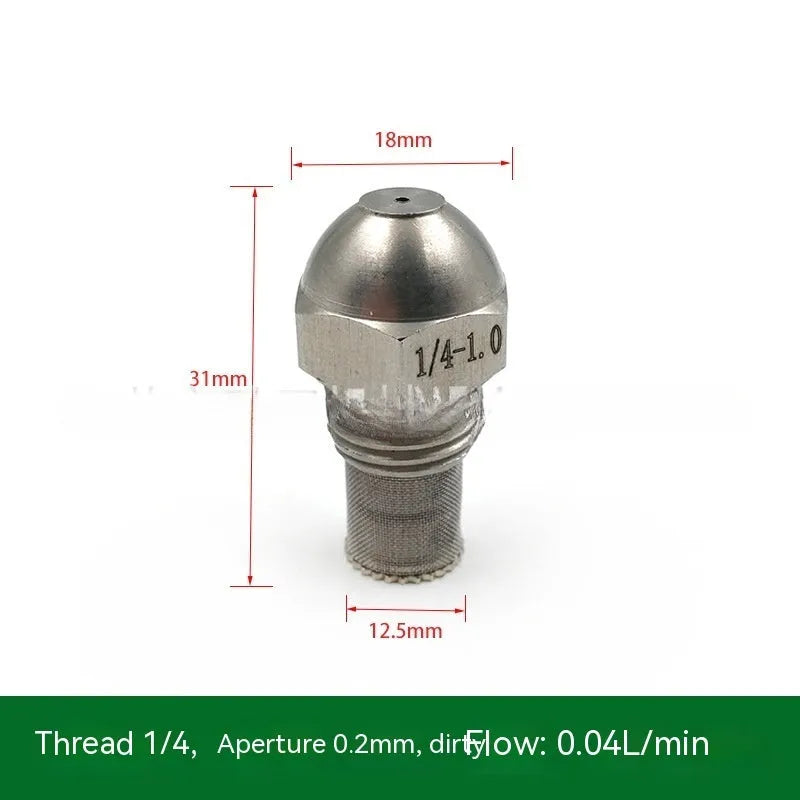

The nozzle is fabricated entirely from 304 stainless steel, an alloy known for its excellent corrosion resistance and mechanical strength. This material selection makes the nozzle suitable for continuous use with water, in humid atmospheres, or with certain industrial fluids without significant risk of rust degradation. The construction includes a 2-point spray head, which is designed to split the incoming liquid stream to promote finer atomisation. An integral 100-mesh stainless steel filter screen is fitted to help capture particulates from the fluid supply before they reach the precise aperture, reducing the likelihood of clogging and maintaining consistent spray patterns.

Size and Practical Fit

The primary physical specification is the 1/4-inch external thread connection, a common standard in industrial fluid systems that allows for straightforward installation using compatible fittings. The key operational variable is the aperture size. Users can select from ten precisely machined diameters: 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm, 1.5mm, and 2.0mm. This range allows for significant tailoring of the spray; a 0.2mm aperture will produce a very fine, low-flow mist ideal for subtle humidification, while a 2.0mm aperture allows for a higher flow rate suitable for cooling or larger-scale fog output.

Uses and Placement

This nozzle's versatility stems from its adjustable spray characteristics via aperture selection and its durable construction. It serves specific functions across industrial, agricultural, and aesthetic applications where controlled liquid atomisation is required.

Event or Professional Use

In professional contexts, this nozzle is applicable in environmental control systems. It can be integrated into ductwork or chambers for adiabatic cooling and humidification, helping to regulate temperature and moisture levels in warehouses, greenhouses, or manufacturing spaces. For dust suppression, arrays of these nozzles can be installed to create a fine mist curtain that weighs down airborne particles at transfer points or demolition sites. In fuel systems, particularly for burners using methanol or similar fuels, the fine atomisation ensures efficient mixing with air for cleaner and more complete combustion.

Everyday Home Use

While industrial in design, a practical home or garden application is in high-pressure misting systems for landscape cooling and creating aesthetic fog effects. The stainless steel construction withstands outdoor exposure, and the fine mist produced can cool patios or enhance garden features like ponds or rockeries. It can also be part of a DIY humidity control system for specialized plant cultivation, such as in orchidariums or terrariums, where the aperture size can be matched to the required mist output.

Benefits and Buying Value

The value of this nozzle lies in its material durability, the flexibility offered by multiple aperture choices, and its targeted design for reliable atomisation. It addresses the need for a single, robust component that can be specified for a wide array of mist-generating tasks.

Reuse and Low Maintenance

The stainless steel construction is inherently durable and designed for long-term reuse. It resists corrosion from water and many common fluids, meaning it can be installed and remain in service with minimal degradation. The included 100-mesh filter is a practical feature that contributes to low maintenance by helping to prevent clogging, which is a common failure point in spray nozzles. This combination reduces downtime and the frequency of replacement, offering operational reliability.

Why Choose This Product

This nozzle provides a concrete, specification-driven choice for anyone needing a fine atomisation spray head. Instead of a generic nozzle, you select the exact aperture size required for your project's flow and droplet size parameters. The 304 stainless steel material is a known quantity for corrosion resistance, offering a practical advantage over brass or plastic nozzles in harsh or wet environments. Its design for both high and low-pressure applications, coupled with the standard 1/4-inch thread, makes it a versatile and interoperable component for system builders and technicians.
