Silicon Labs EFR32MG21 Zigbee USB Dongle: Pre-flashed Coordinator for Home Assistant and Zigbee2MQTT

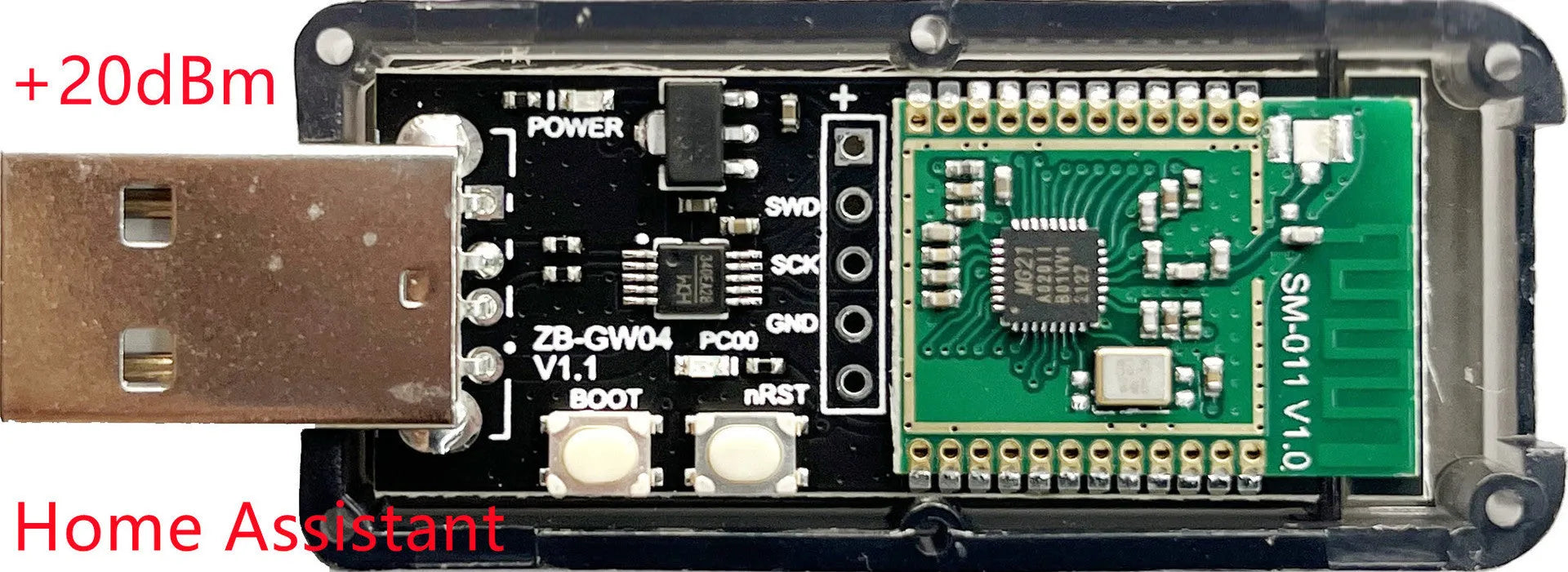

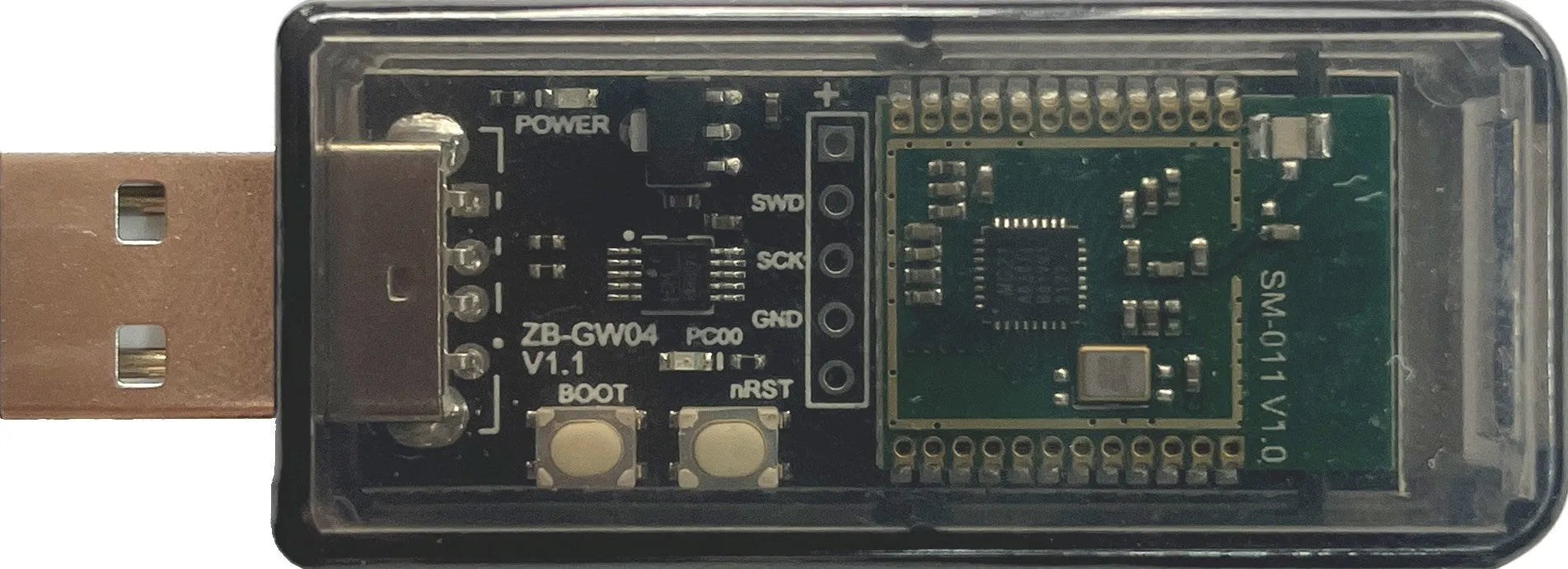

This USB dongle serves as a dedicated Zigbee 3.0 network coordinator, designed to bridge your Zigbee devices with popular home automation platforms. It arrives pre-configured with the EZSP v8 (EmberZNet Serial Protocol version 8) firmware, eliminating initial setup complexity for users of Home Assistant's ZHA component or the Zigbee2MQTT bridge. Built around the capable Silicon Labs EFR32MG21 wireless microcontroller and a CH340E USB-to-serial converter, it provides a stable and compliant foundation for creating or expanding a Zigbee mesh network. Its primary role is to translate between your computer's USB port and the Zigbee wireless protocol, acting as the central hub for all other Zigbee end devices like sensors, lights, and switches in your setup.

Features and Construction

This dongle integrates several key hardware and firmware features that define its operation and compatibility within a smart home ecosystem.

Material and Build

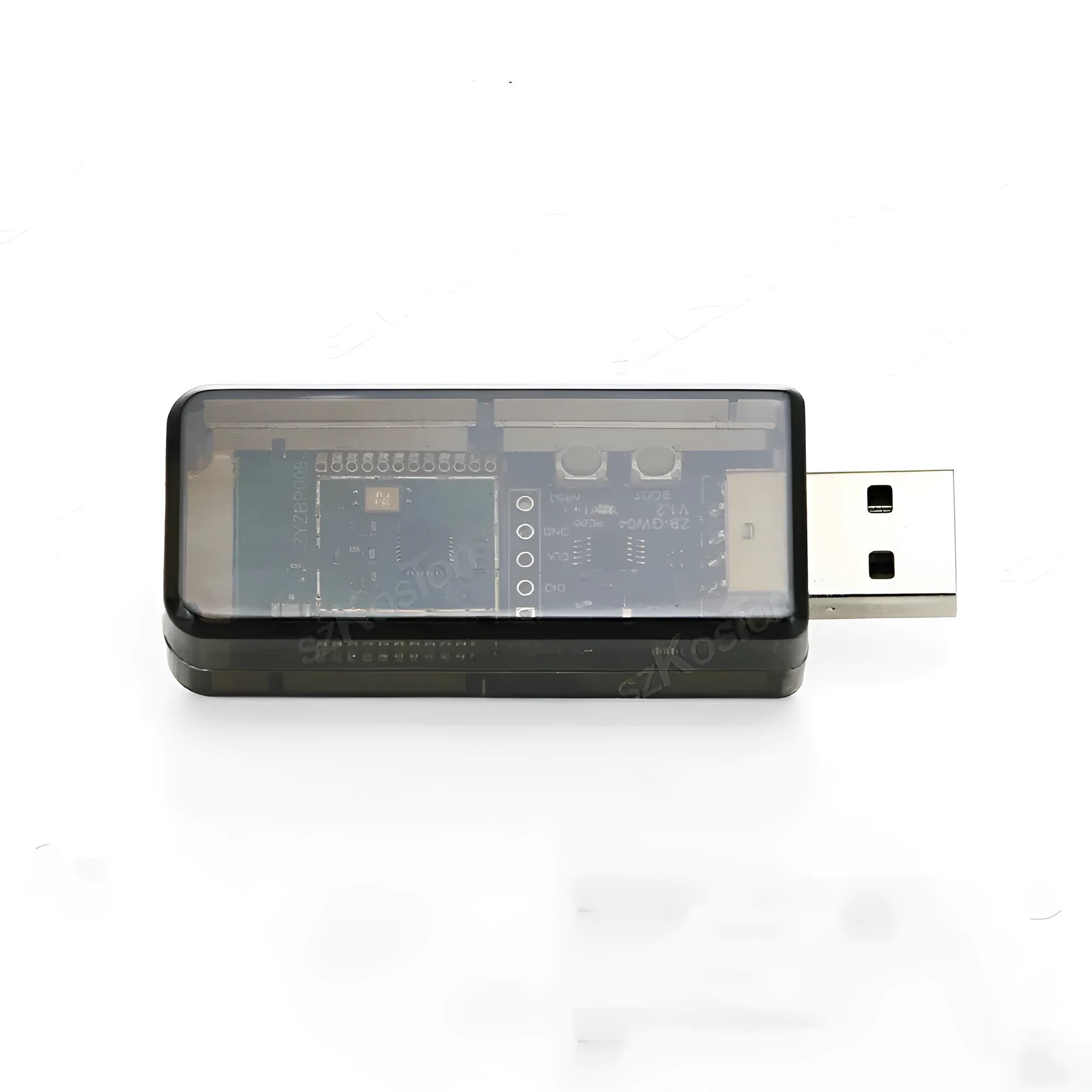

The electronic components, including the EFR32MG21 chip and CH340E interface, are housed within a plastic shell. This material choice provides a lightweight and durable enclosure suitable for permanent installation behind a computer or home server. The construction focuses on the core functionality of wireless communication and USB connectivity, with the plastic shell protecting the internal PCB and its integrated PCB antenna.

Size and Practical Fit

Specific dimensional measurements for the dongle are not provided in the source material. Its form factor is that of a standard USB dongle, intended for direct insertion into an available USB port on a host device like a Raspberry Pi, NUC, or home server. The lack of protruding external antenna, due to the use of a PCB antenna, allows for a compact and low-profile installation, reducing the risk of physical damage in a fixed location.

Uses and Placement

The dongle is specifically engineered for creating and managing a personal Zigbee network, with clear integrations for major open-source home automation tools.

Event or Professional Use

For advanced users or those deploying robust home automation systems, the dongle's support for over-the-air (OTA) updates via its UART interface is a significant feature. The update process requires a specific button sequence: press and hold the BOOT button, then press and release the nRST button, before finally releasing the BOOT button. This allows for field upgrades of the coordinator firmware without physical retrieval, which is useful for maintaining networks in permanent installations. Its +20dBm output gain can be advantageous in larger homes or environments with many wireless obstacles.

Everyday Home Use

For the typical smart home enthusiast, the primary use is with Home Assistant via the ZHA integration or with Zigbee2MQTT. The dongle being pre-flashed with EZSP v8 means it is ready to be recognised and configured by these platforms with minimal technical steps, often requiring only the selection of the correct serial port and a baud rate of 115200. It acts as the constant, always-on heart of the Zigbee network, allowing battery-powered sensors and smart plugs to connect reliably.

Benefits and Buying Value

The value of this product lies in its certified compatibility, ready-to-use state, and the performance characteristics of its underlying hardware.

Reuse and Low Maintenance

The device is designed for continuous operation as a network coordinator. The plastic housing is resilient for long-term stationary use. The ability to perform OTA updates via UART helps future-proof the device, allowing users to apply security patches or feature enhancements to the coordinator firmware as they become available, thereby extending the useful lifespan of the hardware itself within the evolving smart home landscape.

Why Choose This Product

This dongle is a direct choice for users who have confirmed they are running Home Assistant with ZHA or are experimenting with Zigbee2MQTT. The guarantee of pre-flashed EZSP v8 firmware removes a common point of setup failure compared to generic modules. The inclusion of the +20dBm high-power radio chipset and PCB antenna offers better potential range and network stability than basic low-power dongles, which can be critical for ensuring all Zigbee devices remain connected in larger or more challenging home layouts.
