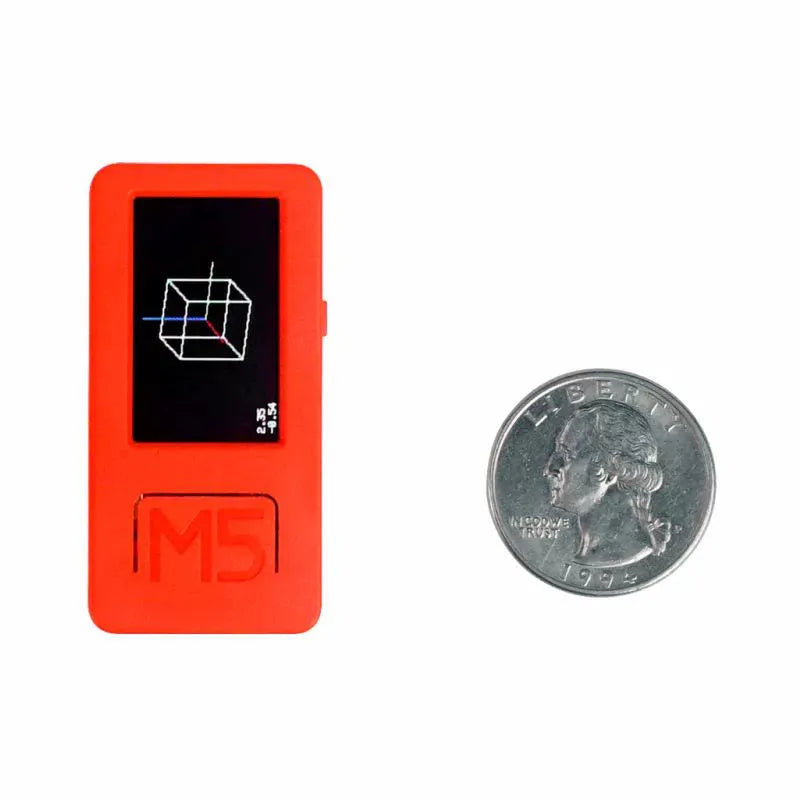

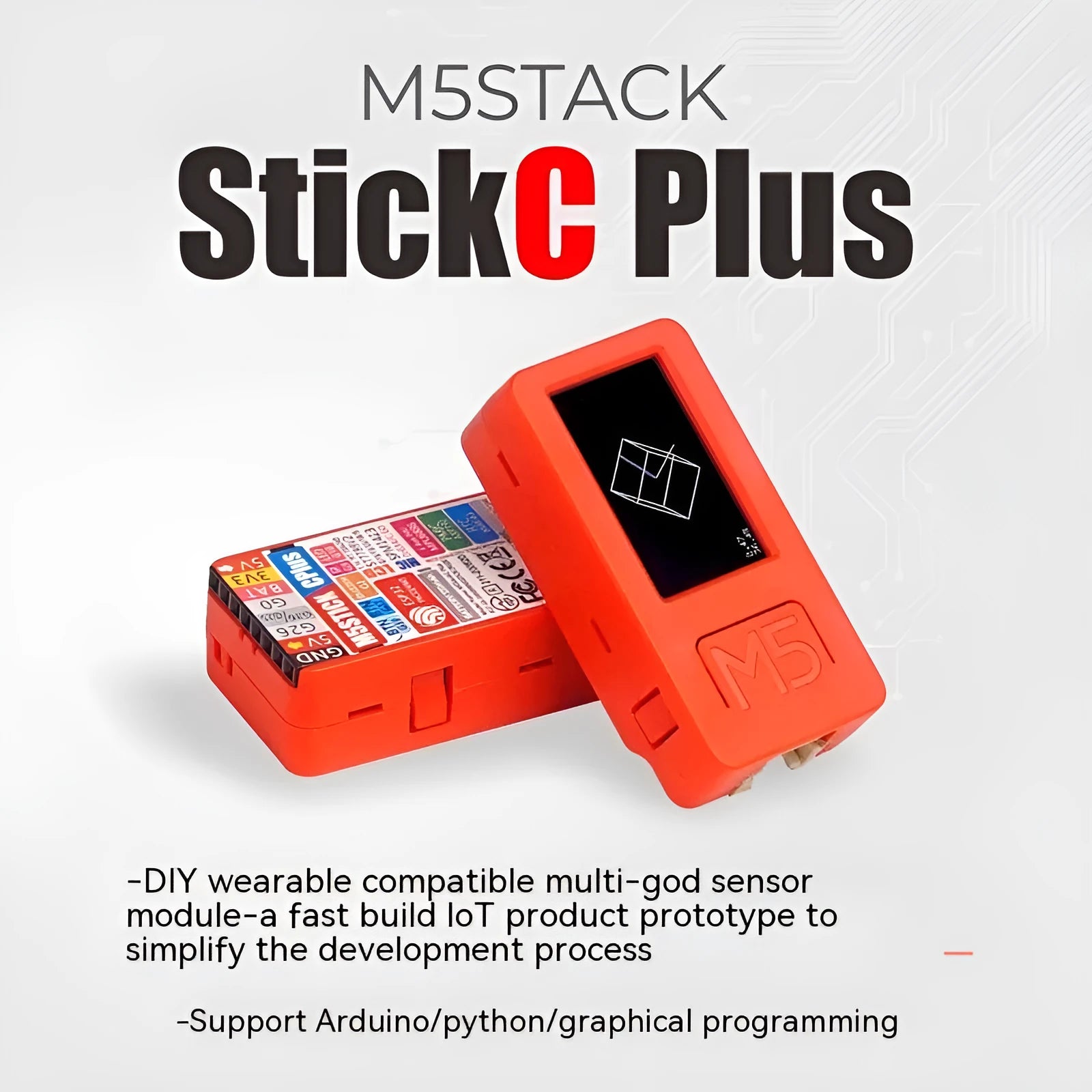

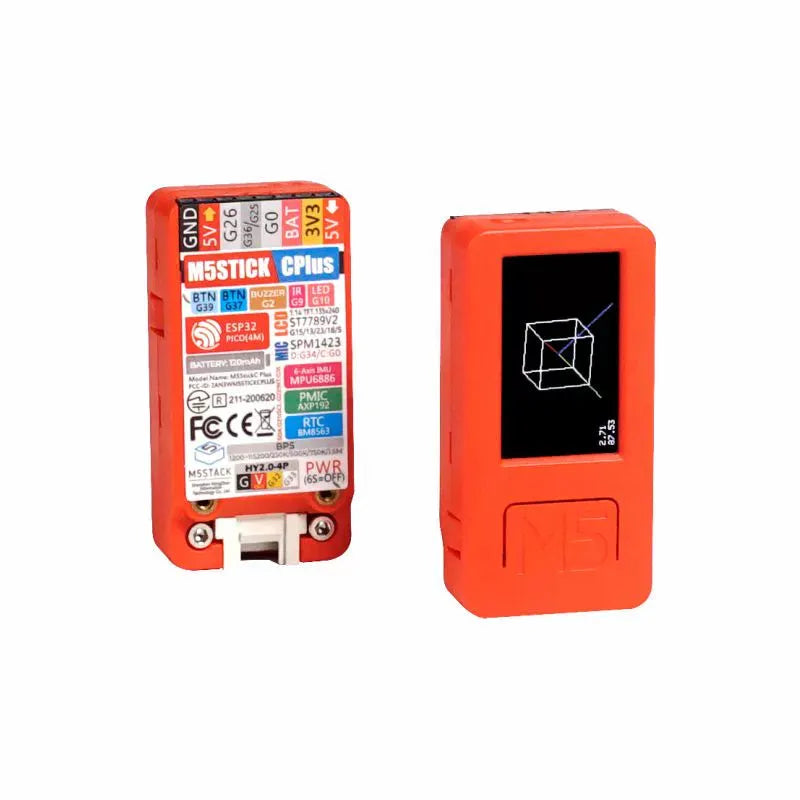

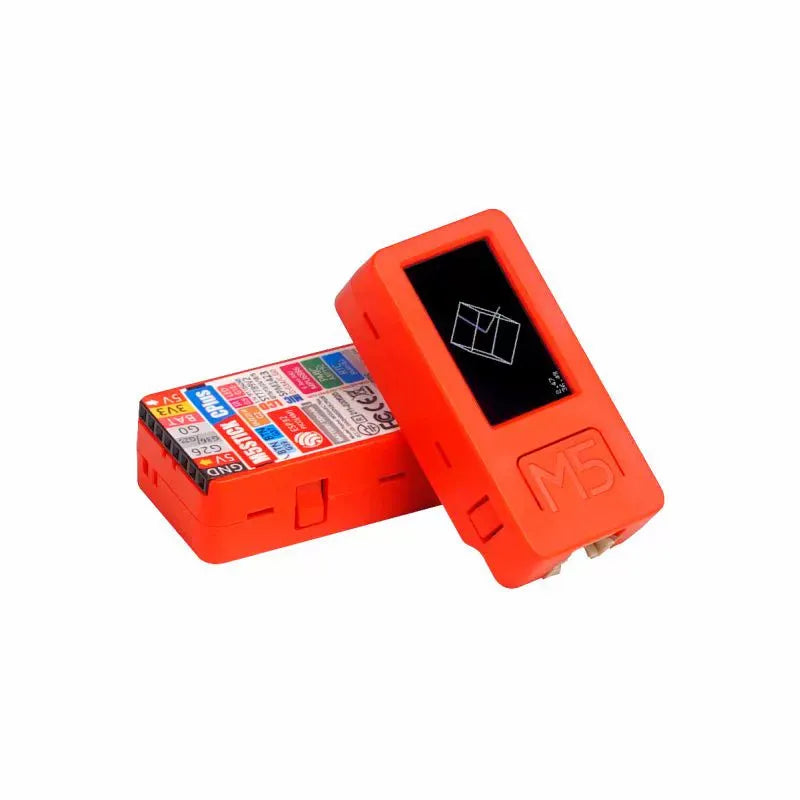

Official IoT Development Board with Graphical Programming Suite for Electronics Projects

This official IoT development board provides a complete solution for beginners and educators entering the world of electronics and programming. The included graphical programming suite eliminates the need for prior coding experience, allowing users to create functional projects through visual programming blocks. With a 1.14-inch colour TFT LCD screen for immediate feedback and multiple connection interfaces, this board serves as a practical platform for learning electronics concepts, prototyping ideas, and developing IoT applications without complex setup procedures.

Features and Construction

The development board combines multiple hardware components into a single platform designed for educational and prototyping use. Each element serves a specific function in the overall system, from visual feedback to physical input, creating a comprehensive tool for hands-on learning and project development.

Material and Build

Constructed using PC (polycarbonate) material, the board provides a durable housing for the electronic components while maintaining a lightweight profile suitable for desktop use and portable projects. The AXP192 power management unit ensures efficient power distribution across the system components, while the BM8563 real-time clock chip adds timing capabilities to projects. This combination of power management and timing functions creates a stable platform for various electronic applications.

Size and Practical Fit

The board's design incorporates a 1.14-inch colour TFT LCD screen with a resolution of 135x240 pixels, providing sufficient display area for showing sensor readings, project status, or simple graphics. The ST7789v2 controller manages the screen's colour reproduction and refresh rate. With a single Type-C interface handling both 5V 500mA power input and data transfer, the physical connection setup remains uncomplicated, requiring just one cable between the board and a computer or power source.

Uses and Placement

This development board serves multiple roles in educational, hobbyist, and prototyping contexts. Its integrated components and programming approach make it suitable for various skill levels, from complete beginners exploring electronics to more experienced users developing proof-of-concept projects.

Event or Professional Use

In workshop or classroom settings, the graphical programming suite enables instructors to demonstrate electronics concepts without requiring students to learn programming syntax first. The board's multiple interfaces allow for connecting various sensors and outputs during live demonstrations. For professional prototyping, the GROVE interface combining I2C, I/O, and UART protocols provides flexibility for testing different components and communication methods within development workflows.

Everyday Home Use

For hobbyists and home enthusiasts, this board offers an accessible entry point to electronics projects. The included microphone enables audio-based applications, while the two custom buttons provide physical input options for interactive projects. The red status LED offers visual feedback for system states or project indicators. These elements combine to create possibilities for home automation prototypes, educational experiments, or creative electronic art projects.

Benefits and Buying Value

The development board's value lies in its integrated approach to electronics learning and project development. By combining hardware, programming software, and multiple interfaces in one package, it reduces the barriers to entry for those new to the field while still offering capabilities useful for more experienced users.

Reuse and Low Maintenance

As a development platform, this board supports repeated use across multiple projects through its reprogrammable nature and standard interfaces. The graphical programming suite allows users to modify projects without purchasing additional software. The Type-C interface represents a contemporary connection standard compatible with many modern computers and power adapters, reducing the need for special cables or adapters.

Why Choose This Product

This IoT development board stands out for its complete package approach, providing both hardware and programming software in one solution. The graphical programming suite specifically addresses the common challenge of programming learning curves in electronics projects. The inclusion of a colour display, microphone, and multiple interfaces creates a versatile platform suitable for various project types, from environmental monitoring to interactive art installations.
