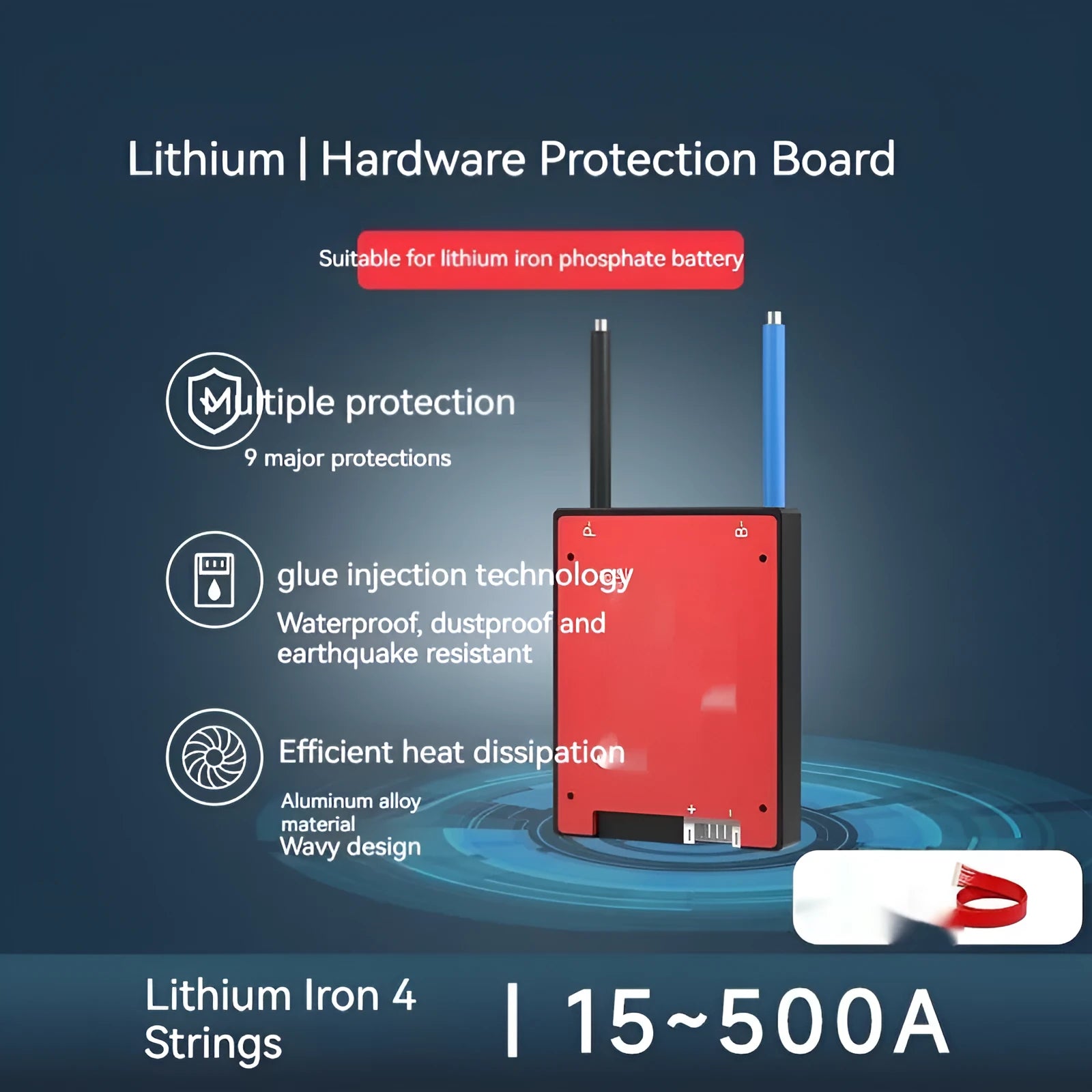

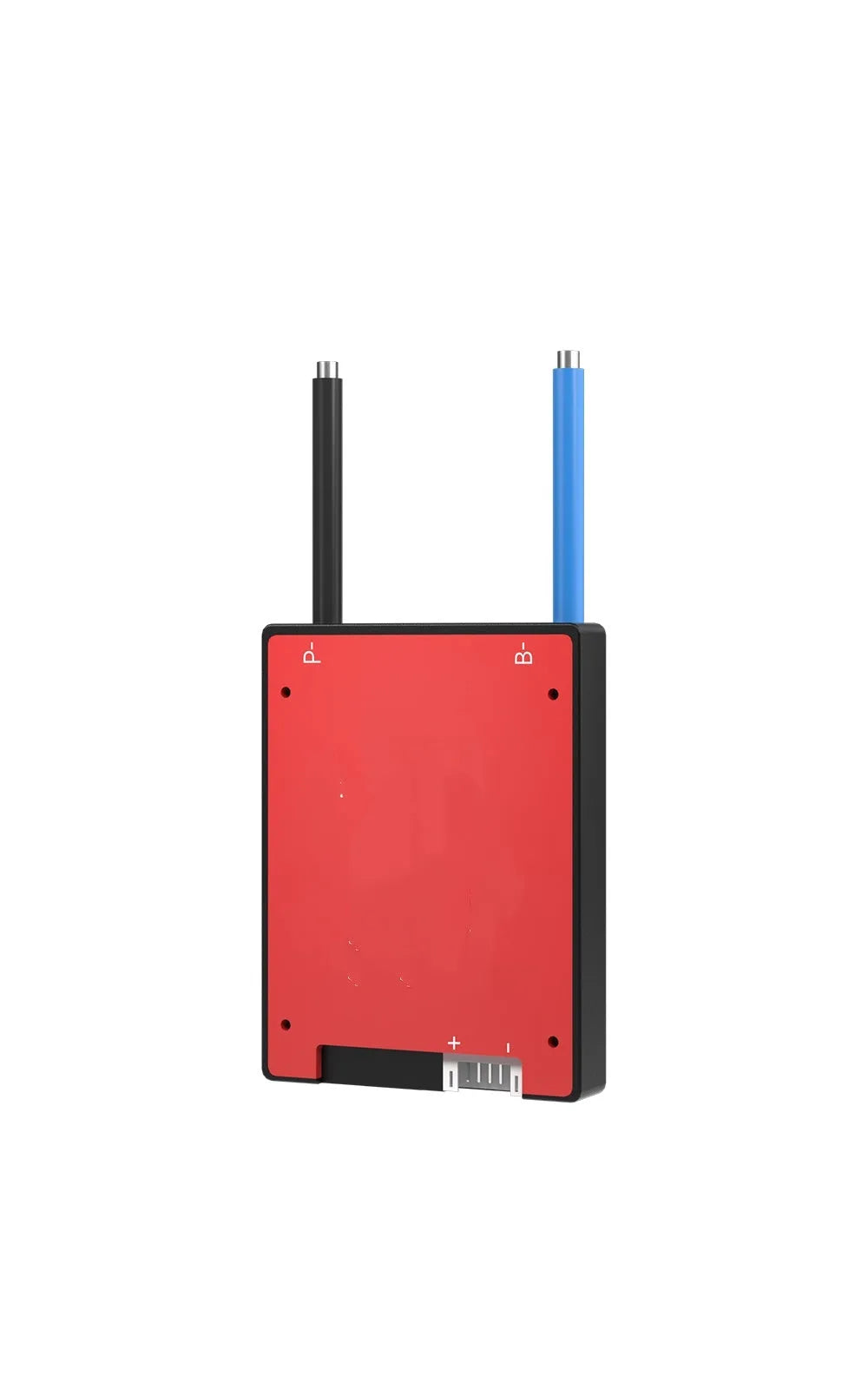

Dali 12V Lithium Iron Phosphate Battery Protection Board with 4S Passive Cell Balancing Technology

This battery protection board provides essential management for 12V lithium iron phosphate (LiFePO4) battery packs configured with four cells in series. Designed as a battery management system (BMS), it monitors individual cell voltages and provides protection against overcharge and excessive discharge conditions that can damage battery chemistry. The board's same-port configuration simplifies wiring by using common terminals for both charging and discharging circuits, reducing installation complexity. Available in multiple current ratings from 15A to 500A, it can be matched to battery packs of various capacities and power requirements.

Features and Construction

This protection board incorporates several key features for reliable battery pack management in various applications including solar energy storage, electric vehicles, and backup power systems.

Material and Build

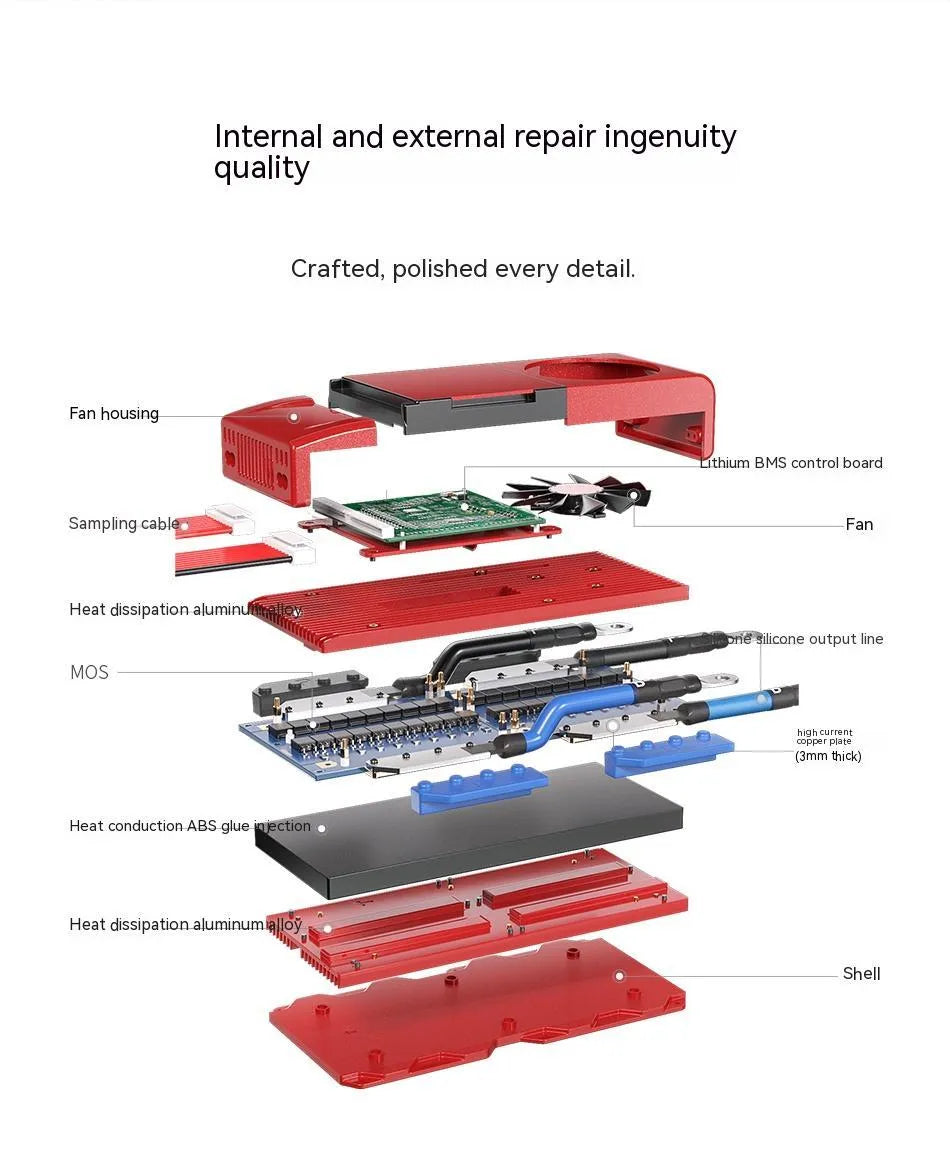

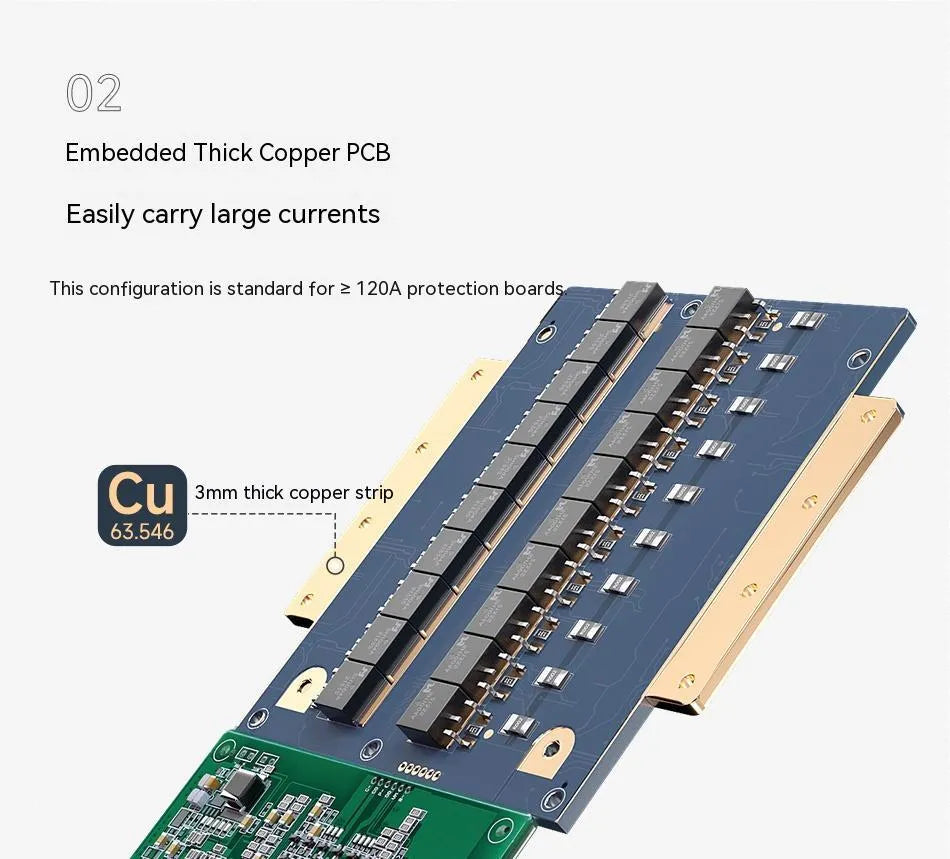

The board is constructed on a standard printed circuit board (PCB) using surface-mounted electronic components appropriate for battery management applications. Higher current models incorporate aluminium heatsinking elements to dissipate thermal energy generated during operation. Models designated with fan cooling include integrated plastic housing and fan assemblies designed to improve airflow across critical components when handling sustained high-current loads.

Size and Practical Fit

While specific dimensional data is not provided in the source material, the board is designed to be mounted within battery enclosures or alongside battery packs in various configurations. The same-port terminal arrangement reduces wiring complexity by eliminating the need for separate charge and discharge connections. This design consideration makes installation more straightforward in space-constrained applications where multiple connection points would create wiring challenges.

Uses and Placement

This protection board serves multiple applications where lithium iron phosphate battery technology requires voltage monitoring and protection mechanisms.

Event or Professional Use

In professional and commercial applications, the board provides reliable battery management for solar energy storage systems, uninterruptible power supplies, and electric vehicle conversions. The range of current capacities from 15A to 500A allows selection based on specific power delivery requirements. Models with integrated cooling fans are particularly suitable for applications involving sustained high-current discharge or environments with limited natural airflow, such as enclosed battery compartments or thermally challenging installations.

Everyday Home Use

For residential applications, this protection board can manage battery packs used in home solar systems, recreational vehicles, marine applications, and portable power stations. The passive cell balancing feature helps maintain battery health over multiple charge cycles by addressing minor voltage differences between cells. Lower current models (15A-60A) are appropriate for smaller residential battery banks, while higher capacity versions suit larger home energy storage requirements.

Benefits and Buying Value

This protection board offers practical advantages for users seeking reliable battery management without unnecessary complexity.

Reuse and Low Maintenance

The board's passive cell balancing function operates automatically during charging cycles, requiring no user intervention to maintain its balancing function. This design approach supports long-term battery health by preventing individual cells from drifting to different voltage levels over repeated charge-discharge cycles. The solid-state construction with no moving parts (except fan-equipped models) contributes to reliable operation with minimal maintenance requirements beyond ensuring proper electrical connections remain secure.

Why Choose This Product

This protection board provides a practical solution for managing 4S lithium iron phosphate battery configurations with its same-port wiring approach reducing installation complexity. The availability of multiple current ratings allows matching the protection level to specific battery pack capabilities without over-specification. Models with integrated cooling offer thermal management for applications where sustained high-current operation generates significant heat, potentially extending component lifespan in demanding operating conditions.
