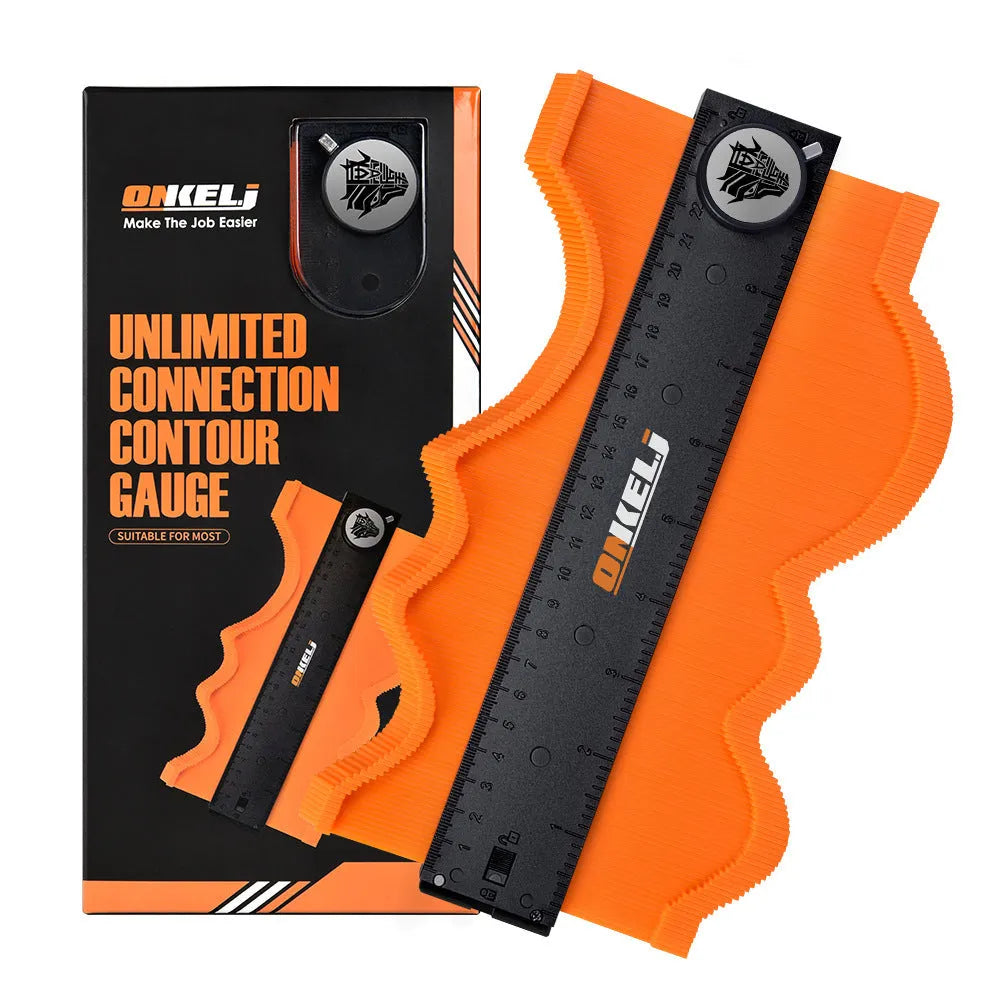

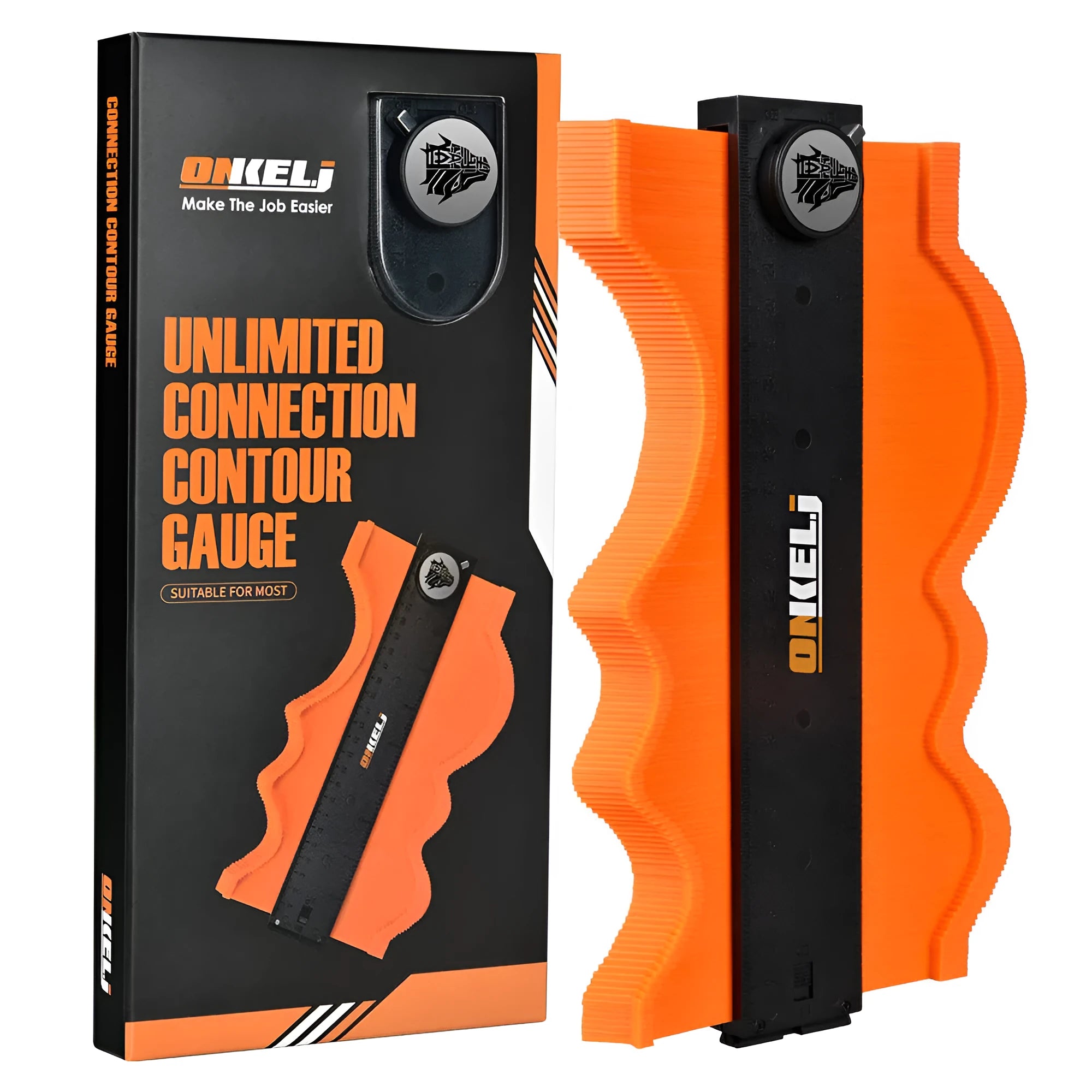

10-Inch Locking Contour Gauge with Unlimited Stitching for Precise DIY and Professional Fitting

Transferring complex curves and irregular profiles from one surface to another is a common challenge in renovation, woodworking, and tiling. This 10-inch contour gauge provides a straightforward mechanical solution. Its design centres on a row of fine pins that move independently, conforming to any shape pressed against them. The critical addition is the integrated lock belt system, which clamps all pins securely in place once the profile is captured. This prevents the accidental shift that can ruin measurements when moving the tool to your workpiece. Constructed from ABS plastic and stainless steel, it balances durability with a practical weight, making it a reliable addition to any toolkit where precise fitting is required.

Features and Construction

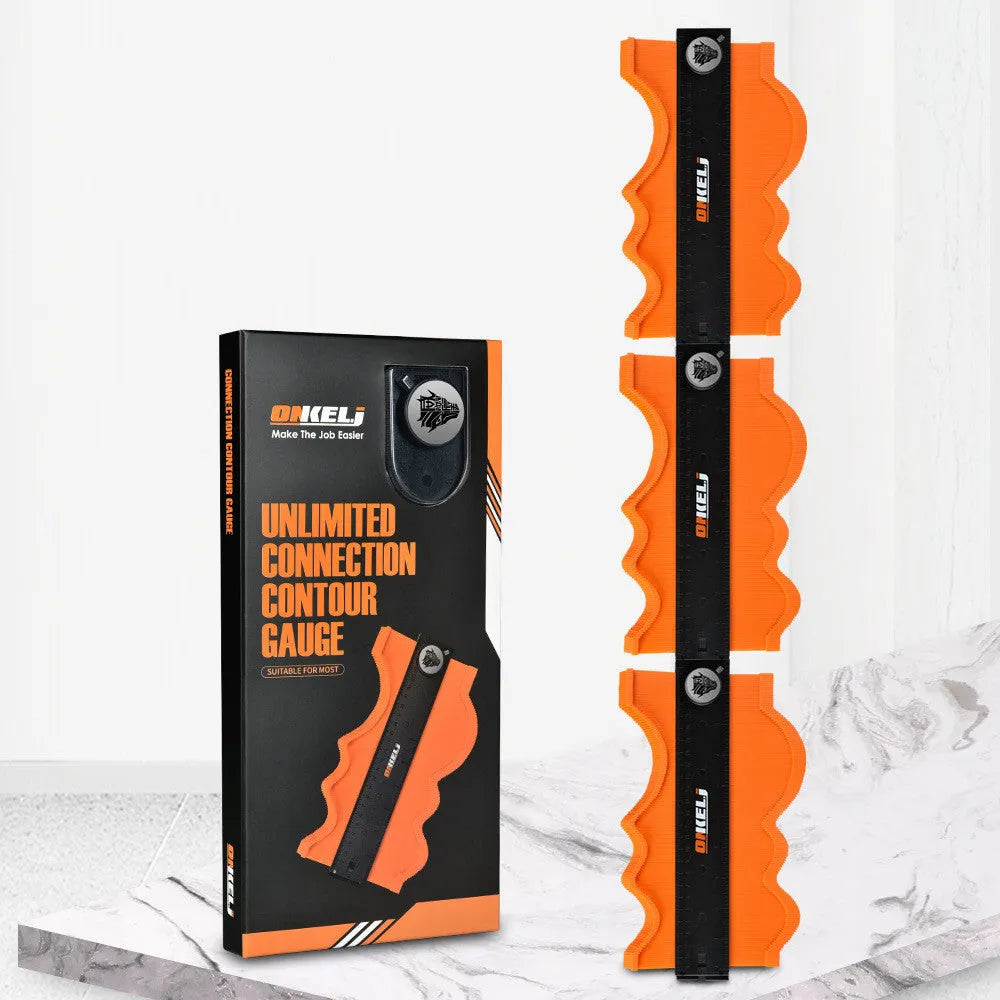

The gauge's functionality is built on a few key engineered features that work together to simplify profile copying. Its "unlimited stitching" refers to the way each pin moves independently, allowing it to mimic virtually any contour within its 10-inch span, from gentle coving to intricate mouldings. The construction marries different materials for optimal performance in each part of the tool.

Material and Build

The main frame and body of the gauge are moulded from ABS plastic. This material choice offers high impact resistance and rigidity to keep the pin array perfectly aligned, while keeping the overall tool lightweight for easy handling. The sliding pins and the central locking mechanism are made from stainless steel. This ensures the pins move smoothly without seizing and provides corrosion resistance, which is important for a tool that might be used in damp environments like bathrooms or with wet building materials. The combination results in a robust tool designed for repeated use.

Size and Practical Fit

With external dimensions of 265mm long by 130mm wide and 27mm thick, the gauge has a substantial feel in the hand without being cumbersome. The 10-inch (approximately 254mm) length of the movable pins defines its maximum profiling capacity. This size is well-suited for common domestic and trade tasks such as fitting skirting boards around uneven floors, cutting laminate or vinyl flooring to fit wall contours, scribing worktops to walls, or profiling tiles around pipes and fixtures. The 1mm accuracy specification indicates the tool's capability for detailed work, allowing for tight, gap-free finishes.

Uses and Placement

This tool finds its place anywhere an exact shape needs to be replicated from one surface to another. It eliminates guesswork and complex geometry, providing a direct physical template. Its utility spans from occasional DIY projects to regular use by tradespeople, where speed and accuracy directly impact job quality and efficiency.

Event or Professional Use

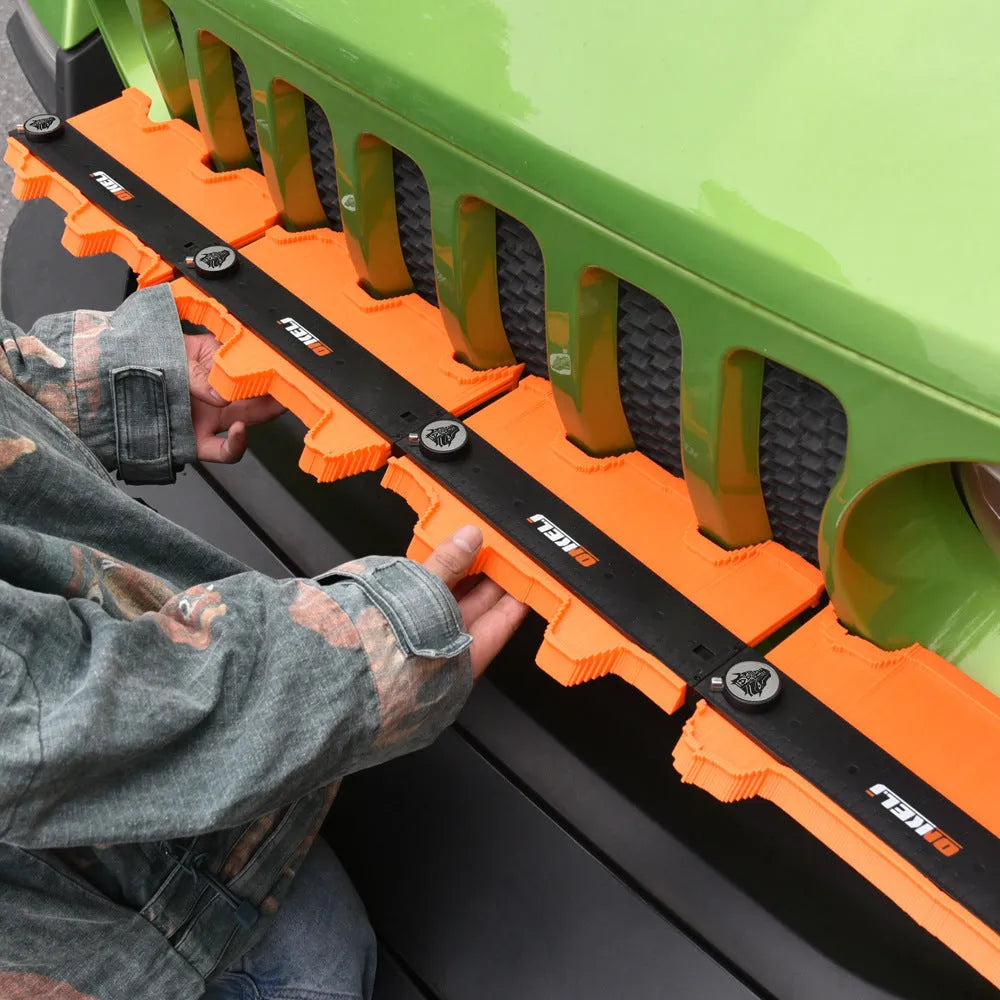

For professional installers of flooring, kitchens, or bathrooms, the gauge saves significant time. Instead of taking multiple manual measurements of an uneven wall, a single press of the gauge captures the entire profile at once. The lock belt is crucial here, as it allows the carpenter, tiler, or fitter to carry the captured shape across a room without fear of the pins jostling out of position. This consistency ensures that the cut piece will match the profile perfectly the first time, reducing material waste and call-backs for adjustments. The stainless steel construction stands up to the demands of a busy tool bag.

Everyday Home Use

For the home improver, the gauge demystifies tasks that often seem daunting. Installing a new skirting board against an old, uneven plaster wall becomes manageable. Cutting the last piece of laminate flooring to fit a bumpy wall edge is no longer a chore prone to error. Even crafting projects, like creating a custom inlay or copying a decorative moulding, are within reach. The tool's mechanical operation requires no batteries, calibration, or technical knowledge—press, lock, and trace. It turns a complex problem into a simple three-step process, empowering users to achieve cleaner, more professional-looking results in their own homes.

Benefits and Buying Value

The value of this contour gauge lies in its ability to turn irregular shapes into a repeatable, reliable process. It replaces makeshift methods like using cardboard or flexible tape, which are often imprecise and single-use. By offering a dedicated, reusable tool, it provides long-term utility for a wide range of projects.

Reuse and Low Maintenance

As a purely mechanical tool with no electronic parts, its maintenance is minimal. The stainless steel pins resist rust, and the ABS plastic body can be wiped clean of dust and debris. There are no blades to sharpen or batteries to replace. After each use, simply releasing the lock and pressing the pins flat against a table resets it for the next job. This reusability makes it a cost-effective solution over time, as it can be used for countless projects around the house, workshop, or job site without any ongoing cost or consumables.

Why Choose This Product

This specific model brings together several practical advantages. The 10-inch capacity handles most common profiling tasks encountered in domestic and light trade work. The integrated locking mechanism is the key differentiator, securing your measurement firmly until you are ready to transfer it. The dual-material construction of ABS and stainless steel aims for a balance of durability, smooth operation, and manageable weight. For anyone facing tasks involving fitting materials against non-linear surfaces, this gauge provides a direct, accurate, and frustration-free method to ensure pieces fit correctly the first time, saving both time and material.
